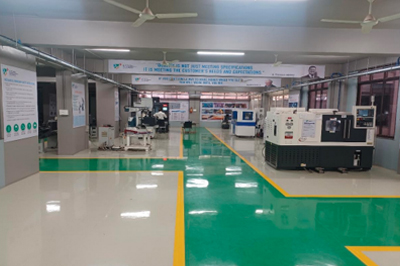

Manufacturing Lab

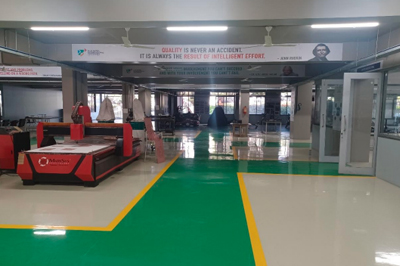

Facilities at TAKSHASHALA

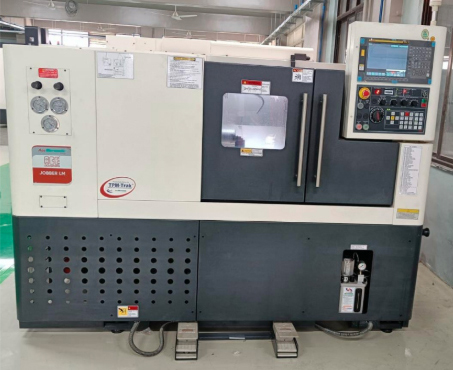

Name of the Equipment: CNC Lathe machine (LM Jobber)
| Features | Specifications |
|---|---|
| Control system : | Fanuc |
| Swing over Bed | 500 mm |
| Distance between centers | 425 mm |
| Maximum turning Diameter | 320 mm |
| Between centre turning diameter | 225 mm |
| Maximum turning Length | 400 mm |
| Maximum Spindle speed | 4000 rpm |
| Spindle nose | A2-5 |
| Type of guideways | Liner motion guideways |
| X- Axis stroke | 165 mm |
| Z-Axis stroke | 400 mm |

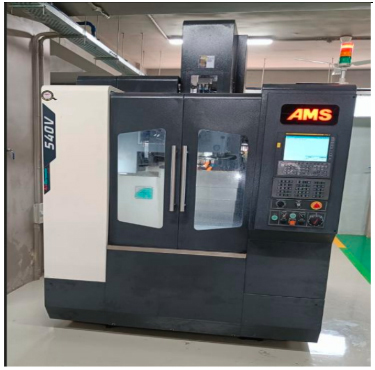

Name of the Equipment: VMC machine (540 V)
| Features | Specifications |
|---|---|
| Control system: | Fanuc |
| Table Size | 750 mm x 400 mm |
| X-Axis travel | 500 mm |
| Y-Axis travel | 400 mm |
| Z-Axis travel | 450 mm |
| Tool shank type | BT-40 |
| Spindle speed | 60–6000 rpm |
| No of tools | 24 |
| Maximum tool diameter | 80 mm |
| Tool change system | Twin arm |
| Cutting speed | 1–10 m/min |
| Rapid traverse | 40 m/min |

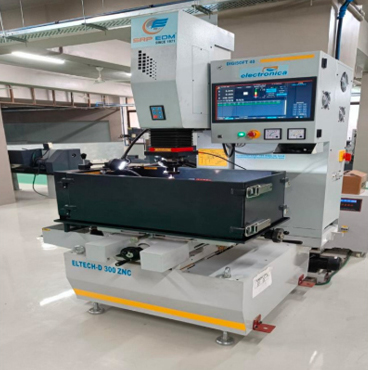

Name of the Equipment: Electrical Discharge Machine (EDM) – D 300 ZNC
| Features | Specifications |
|---|---|
| Model | Eltech D 300 ZNC with 40 A ZNZ generator |
| X-Axis travel | 300 mm |
| Y-Axis travel | 200 mm |
| Z-Axis travel | 250 mm |
| Maximum load on table | 300 Kg |
| Maximum Electrode weight | 100 Kg |
| AC servo motor | Z-Axis |
| Work tank size | 800 x 500 x 350 mm |
| Micro controller | ANTIARC control |

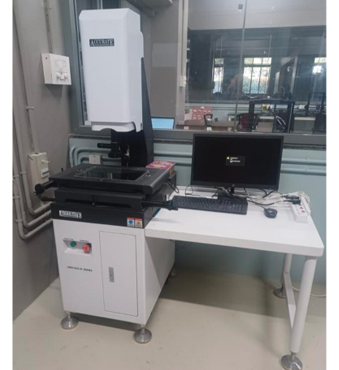

Name of the Equipment: Video measuring Machine (VMM)
| Features | Specifications |
|---|---|
| Model | VMM-MAZ 3020, Make: Accurate |
| Top plate size | 460 x 360 mm |
| X-Axis Travel | 300 mm |
| Y-Axis Travel | 200 mm |
| Z-Axis travel | 200 mm |
| Load capacity | 20 Kg |
| Camera | 1280 x 1024 High resolution |
| Lens | High resolution Tele-centric zoom lens with electrical sensor |
| Optical magnification | 0.7× – 4.5× |
| Measuring accuracy | 2.7+L/250 |
| Repeatability | ± 2 μ |
| Touch probe | Renishaw precision touch probe |
| Illumination | Profile: software-controlled LED profile illumination and Surface: Software controlled 8 zone ring light |

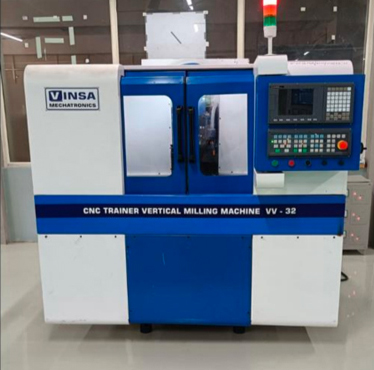

Name of the Equipment: VMC Trainer
| Features | Specifications |
|---|---|
| Model | Power Mill |
| Controller | LNC CNC |
| X-Axis travel | 250 mm |
| Y-Axis travel | 150 mm |
| Z-Axis travel | 200 mm |
| Table Size | 500 x 175 mm |
| T slot | 10 mm |
| Spindle nose taper | BT30 |
| Spindle speed (Programmable) | 100 – 3000 rpm |
| Feed rate (Programmable) | 1 – 1500 mm/min |
| Axis motors | Servo motors |
| Main supply | 440 V AC, 3-phase |

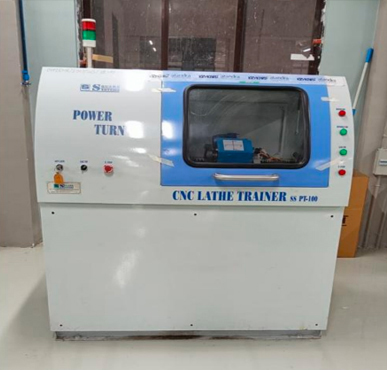

Name of the Equipment: CNC Lathe Trainer
| Features | Specifications |
|---|---|
| Model | VLM-TT-125 |
| Controller | Siemens 808D |
| X-Axis travel | 200 mm |
| Z-Axis travel | 400 mm |
| Chuck size | 200 mm |
| Maximum turning diameter | 100 mm |
| Maximum turning length | 200 mm |
| Swing over carriage | 110 mm |
| Distance between center | 300 mm |
| Turret | 8 stations (Electro-Mechanical) |
| Standard cutting tool size | 16 x 16 mm |

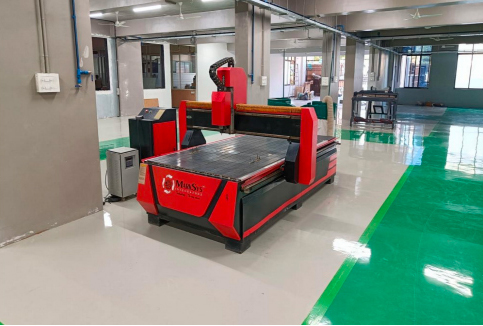

Name of the Equipment: Wood router cutting machine
| Features | Specifications |
|---|---|
| Model | MARKSYS-WR1325 |
| SEQ.NO | 20206010 |
| VOLTAGE | AC-220V+/- 5% |
| WORKING AREA | 1300 MM X 2500 MM |
| TOTAL POWER | 9 Kw |

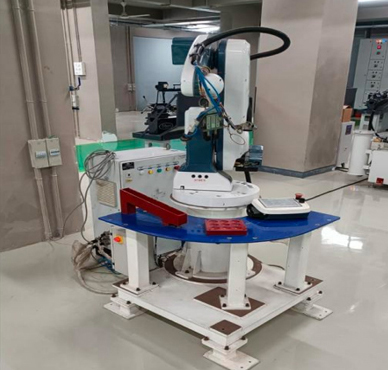

Name of the Equipment: ROBOT
| Axis | Name | Movement range | Maximum speed |
|---|---|---|---|
| J1 | Waist axis | 180° | 110°/Sec |
| J2 | Shoulder axis | 130° | 110°/Sec |
| J3 | Arm axis | 150° | 110°/Sec |
| J4 | Wrist tilting axis | 180° | 150°/Sec |
| J5 | Wrist rotational axis | 300° | 150°/Sec |

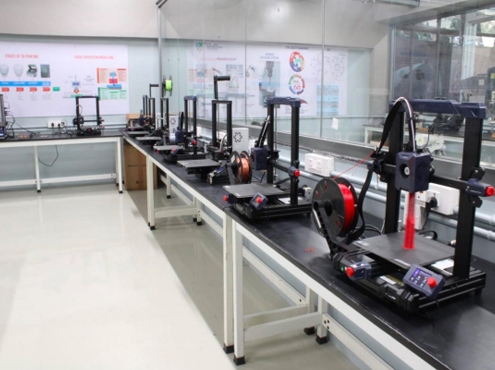

Name of the Equipment: 3D Printing

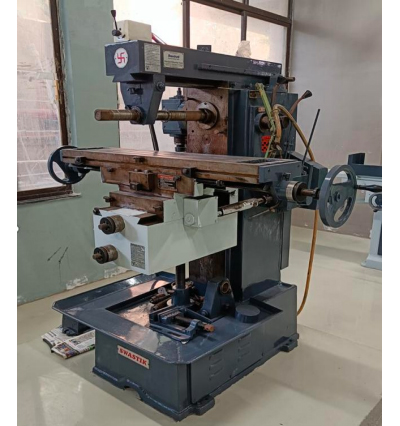

Universal milling machine

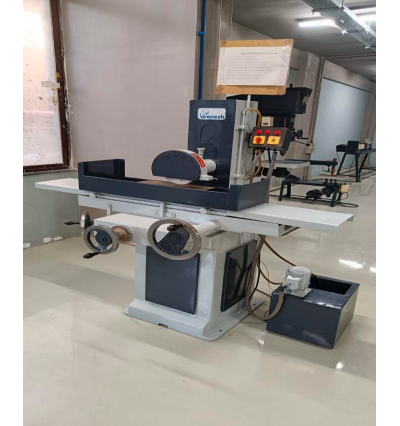

Surface grinder machine

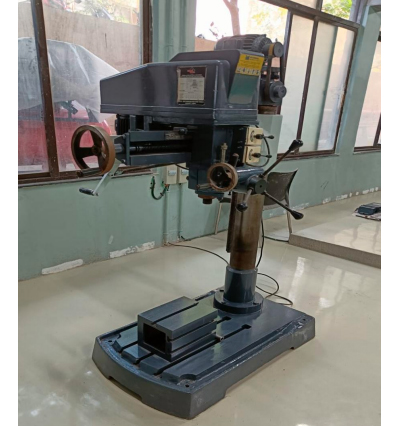

Radial drilling machine

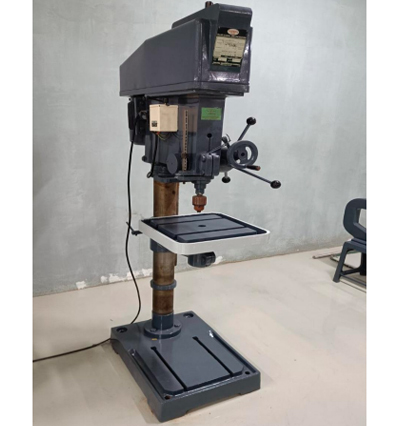

Piller type drilling machine

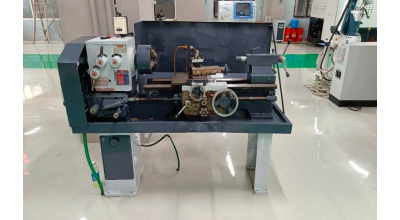

Conventional Lathe machine

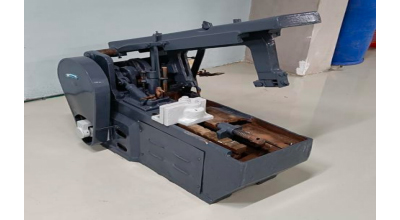

Power hacksaw cutting machine

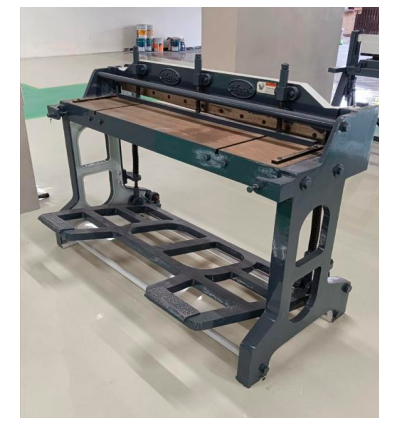

Sheet metal shearing machine

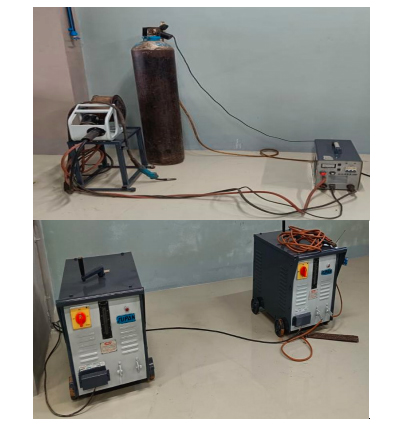

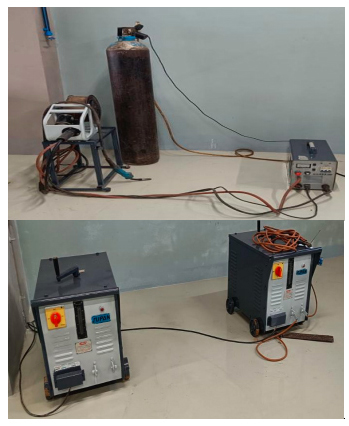

Welding setups

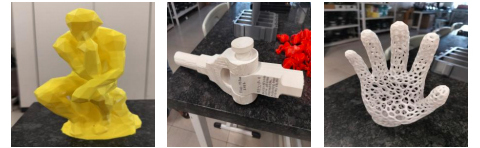

Name of the Equipment: 3 D Printing
Used for Custom Medical Implants, Aerospace Component Fabrication, Automotive Part Development, Tooling and Jigs Production
Printer 1 : Impresora de resina SLA Creality LD-002H
| Parameters | Specifications |
|---|---|
| Model Series | Impresora de resina SLA Creality LD-002H |
| Print Size (L x W x H) (mm): | 119*65*160mm |
| Printing Speed (mm/s): | 6-18s/layers |
| Support Consumables: | Ordinary rigid photosensitive resin standard resin elastomeric |
| Model No.: | LD-002R |
| Nozzle Diameter (mm): | 0.03mm - 0.5mm |
| Ideal Filament: | resin |
| Cost | ₹ 40,000 to 50,000 |
Printer 2 : X1 Series(Bamboo)
| Parameters | Specifications |
|---|---|
| Model Series | X1 Series |
| Print Size (L x W x H) (mm) | 256 x 256 x 256 |
| Printing Speed (mm/s) | 500 |
| Filament Compatibility | ABS, ASA, Carbon/Glass Fibre Reinforced Polymer, PA, PC, PET |
| Model No. | X1 – Carbon Combo |
| Nozzle Diameter (mm) | 0.4 mm |
| Hot end Temperature (°C) | 300 |
| Filament Diameter (mm) | 1.75 |
| Ideal Filament | Carbon/Glass Fibre Reinforced Polymer, PA, PC |
| Cost | ₹1,79,999 to 1,99,999 |
Printer 3 : 3DPrintMill(CR 30)
| Parameters | Specifications |
|---|---|
| Model Series | 3DPrintMill(CR 30) 3D Printer |
| Print Size (L x W x H) (mm): | 200 * 170 * ∞ mm |
| Printing Speed (mm/s): | 500 |
| Filament Compatibility: | PLA, ABS, Nylon, Wood PLA, ASA, Rubber-like (TPU), Chameleon PLA |
| Model No. | Creality Ender 3 V3 SE 3D Printer |
| Nozzle Diameter (mm): | 0.4 mm |
| Hotend Temperature (°C)- | ≤ 240 °C |
| Filament Diameter (mm): | 1.75 |
| Ideal Filament: | PLA / TPU / PETG |
| Cost: | ₹ 1,35,000 to 1,50,000 |
Printer 4 : 3D Printer A350T
| Parameters | Specifications |
|---|---|
| Model Series | 3D Printer A350T |
| Print Size (L x W x H) (mm) | 320 x 350 x 330 mm |
| Printing Speed (mm/s) | 120mm/s |
| Filament Compatibility | PLA, ABS, PETG, TPU (Hardness > 95 Shore A), wood filled PLA |
| Model No. | A350T |
| Nozzle Diameter (mm) | 0.4mm |
| Hotend Temperature (°C) | ≤275°C |
| Filament Diameter (mm) | 1.75mm |
| Ideal Filament | PLA, ABS, PETG, TPU (Hardness > 95 Shore A), wood filled PLA |
| Cost | ₹1,70,000 - 1,80,000 |
Printer 5 : Creality Ender-3
| Parameters | Specifications |
|---|---|
| Model Series | Creality Ender-3 |
| Print Size (L x W x H) (mm) | 220 x 220 x 250 mm |
| Printing Speed (mm/s) | 500 mm/s |
| Filament Compatibility | PLA, ABS, PETG, TPU (Hardness > 95 Shore A), wood filled PLA |
| Model No. | Creality Ender 3 V3 SE 3D Printer |
| Nozzle Diameter (mm) | 0.4mm |
| Hotend Temperature (°C) | ≤260°C |
| Filament Diameter (mm) | 1.75mm |
| Ideal Filament | PLA, ABS, PETG, TPU (Hardness > 95 Shore A), wood filled PLA |
| Cost | ₹25,000 - 30,000 |
Printer 6: Rotrics Dex Arm
| Parameters | Specifications |
|---|---|
| Build Volume | Irregular shape, bigger than 220x155x160 mm (8.6×6.1×6.2') |
| Layer Resolution | 0.1 - 0.3 mm |
| Supported Materials | PLA, TPU, Wood, Carbon Fiber, ABS*, PETG* |
| Nozzle Diameter | 0.4 mm* |
| Nozzle Temperature | Up to 250 °C |
| Supported File Types | STL, OBJ |
| Supported Slicing Software | Rotrics Studio, Cura, S3r |
| Cost | ₹1,50,000 - 1,70,000 |
Printer 7: Anycubic Kobra 2
| Parameters | Specifications |
|---|---|
| Build Volume | 9.8x8.7x8.7in. / 250x220x220mm |
| Printing Speed | 300mm/s(Max.) / 200mm/s(Typ) |
| Operating Screen | 4.3" LCD Touch-Control Screen |
| Material | PLA / ABS / PETG / TPU |
| Connection Method | MicroSD Card |
| Supported File Types | STL, OBJ |
| Machine Dimensions | 19.1x17x17.1in. / 486*440*435mm (HWD) |
| Cost | ₹15,000 - 20,000 |
| Any Specific Requirement |
|

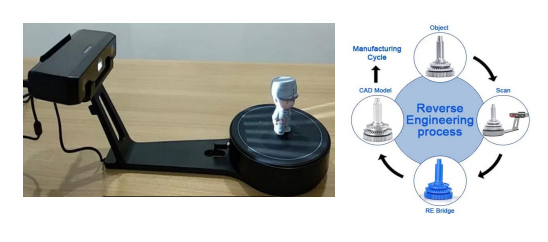

Name of the Equipment: 3D Scanner
A 3D scanner is used in reverse engineering to scan components such as gears, camshafts, and other devices.
| Parameters | Specifications |
|---|---|
| Scan Mode | Fixed Scan (Turntable) Fixed Scan (Without Turntable) |
| Scan speed | Maximum |
| Point distance | 0.17mm~0.2mm |
| Accuracy | Single Scan Accuracy: 0.1mm |
| Suitable distance | 290-480mm |
| Light source | White light LED |
| Maximum | 200mm*200mm*200mm |
| scan volume | (Turntable) 700mm*700mm*700mm (Without Turntable) |
| Minimum scan | 30mm*30mm*30mm |
| Volume | (Turntable) 30mm*30mm*30mm (Without Turntable) |
| Approx. Cost:- | ₹ 3,30,000 to 3,50,000 |
| Any Specific Requirement |
|

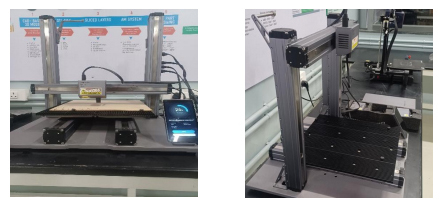

Name of the Equipment: Laser Engraving
Used for creating various profile by laser engraving on various materials like plastics, wood, glass, and metal
| Parameters | Specifications |
|---|---|
| Data Transmission Methods | Wi-Fi, USB cable, USB flash drive |
| Overall Dimensions (W × D × H) | 320 mm × 315 mm × 270 mm |
| Laser Power | 1600 mW |
| Wavelength | 450 nm |
| Supported Materials | Wood, leather, plastic, fabric, paper, non-transparent acrylic |
| Supported File Types | stl, .obj |
| Supported OS | Windows, macOS, Linux |
| Touchscreen Specs | 5 in., Android OS, Quad-core 1.1 GHz ARM Cortex-A7 |
| Rated Power | 320 W |
| Approx. Cost:- | ₹ 2,30,000 to 2,50,000 |
| Any Specific Requirement |
|

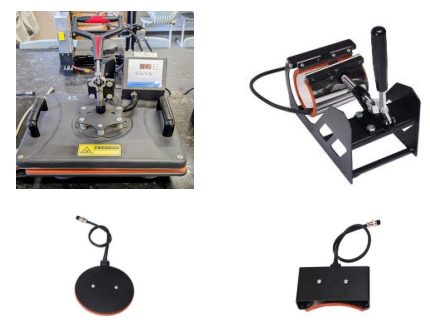

Name of the Equipment: Sublimation Printing Machine
Sublimation printing machines are used for custom T-shirt printing, personalized mug printing, cap and hat printing, mouse pad printing, and keychain customization.
| Parameters | Specifications |
|---|---|
| Functions | Flat press, Mug press, Cap press, Plate press |
| Flat Platen Size | 12 x 15 inches |
| Temperature Range | 0°C to 250°C |
| Time Range | 0–999 seconds |
| Heating Element Type | Coil-based heating pad |
| Pressure Adjustment | Manual knob control |
| Design | Swing-away for safety and convenience |
| Power Supply | 220V, 50Hz |
| Weight | Approx. 25–30 kg |
| Approx. Cost:- | ₹ 25,000 to 30,000 |
| Any Specific Requirement |
|

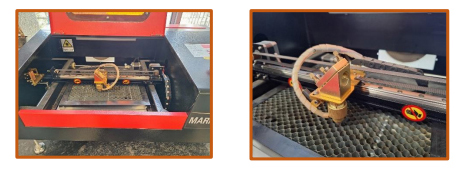

Name of the Equipment: CO2 Laser Cutting Machine
Used for cutting and engraving various materials like plastics, wood, glass.
| Parameters | Specifications |
|---|---|
| Laser Tube | Water Cooling Sealed Glass CO2 |
| Laser Power | 40W |
| Working Size | 300mmX200mm |
| Software Support | Corel Laser |
| Laser tube Life | 2000-3000 Hours |
| Axis | X, Y |
| Control System | NANO M2 |
| Chiller | Water Pump |
| File Support | BPM/JPG/CDR/DWG/DXF/ZIP/DDF |
| Approx. Cost:- | ₹ 60,000 to 70,000 |
| Any Specific Requirement |
|
